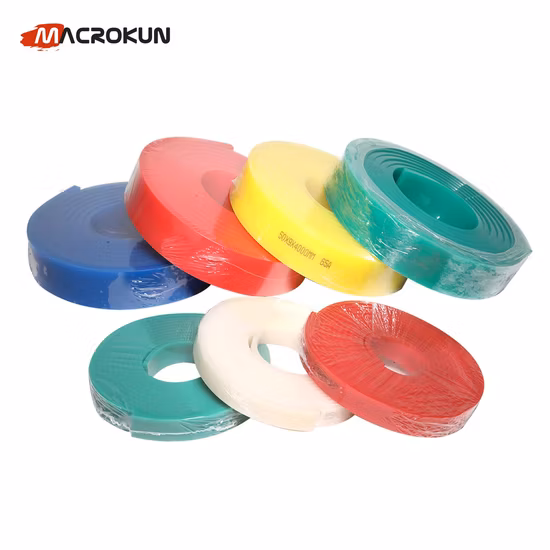

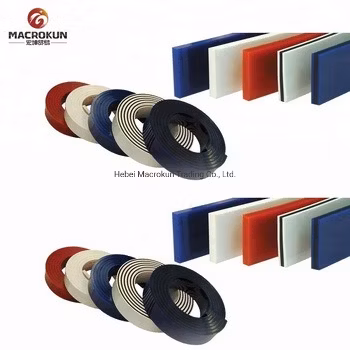

100% Polyurethane Silk Screen Printing Graphic PU Squeegee Rubber
Screen printing squeegee blades MK-PU800: The latest international raw materials and cutting-edge production equipment a
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | MK-PU500 |
Layer | Single Layer, Double Layer, Triple Layer |
Hardness | 55, 60, 65, 70, 75, 80, 85, 90, 95 Shorea |
Width | 5-500mm Customize |
Thickness | 2-30mm Customize |
Product Name | Screen Printing Squeegee Blades |
Material | PU Polyurethane |
Transport Package | Export Carton |
Specification | 50x9x4000mm or could customized |
Trademark | MACROKUN |
Origin | China |
HS Code | 8442500000 |
Production Capacity | 10000 Rolls/Month |
Product Description
Screen printing squeegee blades MK-PU800: The latest international raw materials and cutting-edge production equipment and technology research and development, with the world's top level of squeegee, the characteristics of ten with ultra-solvent and wear resistance, it is the most high-end screen printing the best choice.
Application: It is suitable for printing of touch screen, solar cell, electrode and phosphor.
Printing squeegee:
[Overview]
These screen printing squeegees feature a solid wooden handle or a ergonomical aluminum handle with squeegee rubber already installed. Available from 55 to 95 durometer. Durometer is commonly the most versatile squeegee durometer on the market since it is soft enough to lay a lot of plastisol ink but hard enough to shear the ink away from the screen.
PRODUCT INFORMATION
Welcome to buy the screen printing squeegee produced by MACROKUNScreen printing squeegee size(for you to choose)
MKPU-100 | MKPU-300 | MKPU-500 | MKPU-800 | ±Tolerance | |
Thickness | 2-20mm | ±0.3mm | |||
Width | 9-500mm | ±1.00mm | |||
Length | 10-4000mm | ±5mm | |||
Hardness | 55-95 Shore A | ±3A |
Standard Hardness | |||
Soft | 55,60,65 | Shore A | red or natural |
Medium | 70,75 | Shore A | green or natural |
Hard | 80,85 | Shore A | blue or natural |
Super Hard | 90,95, | Shore A | white |
Triple Medium | 75/90/75 | Shore A | green/white/green |
Triple Soft | 65/90/65 | Shore A | red/white/red |
Precise size, multi-spec supply | Has good solvent resistance |
Carton packaging, smallvolume and practical | Paper tube packaging,large volume and practical | Has good abrasion resistance,can be repaired with a scraper |
Standard Profiles
E1:Straight Square EdgeE2:Single Bevel+Flat tipE3:Single BevelE4:Double Bevel+Flat tipE5:Double Bevel (V shape)E6:Bull Nose (round top)E7:H shapeE8:Triple layerE9:Double layer |
MK-PU100Usage : Widely used in t-shirt,textiles printing etc.Feature : Resistant to water-based inks and common solvents.MK-PU300Standard References : Soft 65sh A red / Medium 75shA greenUsage : Widely used in UV inks,CD/DVD,disc,glass,ceramic,package,PCB printing etc.Feature : It is and all purpose polyurethane blade with goodcombined resistance to chemicals and abrasion.it wasdeveloped to withstand various applications in screen printing.MK-PU500Standard References : Soft 65sh A red / Medium 75shA greenUsage : Widely used in PCB,Solar panel,touch screen,glass,decalpaper printing etc.Feature : It is a special polyurethane blade with exceptioinalcombined resistance to chemicals and abrasion.It was developedto withstand the toughest applications in screen printing and tohave a long shelf life in most environments,sharpens well.MK-PU800Storage of squeegee : Squeegee need to be put in dry and coolwarehouse for long time storage.Newly purchased squeegees,you'd better rotate to use it ,after daily use,just clean the solventon the squeegee surface,keep the squeegee edge upward.Usage : Widely used in UV inks,glass,ceramic,PCB and electronicsprinting etc.Feature : Raw material from Taiwan,super solvent resistant,abrasion resistant,longer service life,anti-static.Triple LayerTriple sof 65/90/65 shA Red/White/Red Advantages.Good resistance to chemicals & abrasion.Resistance to abrasion.Sharpens easy.Color coded for easy identification.High environment stability.Individual package and batch Applications |
TRANSPORT
1.Samples orders usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS and soon)2.Small quantity orders usually within 3-7 days shipped by air or by sea.3.Large quantity orders usually within 7-15 days shipped by sea.The main export port: SHANGHAI
